Impeller 500mm Industrial Centrifugal Fans 8500CMH 900Pa

RDFA Series - Metric；Impeller diameter:200-500mm; Max air flow:8500CMH; Max static pressure:900Pa.

Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. This product series are high efficiency, a low noise level with a high increase in static pressure.

Impeller diameter range:200-280 mm(7-12 inch). Motor can be applied in different frequency and voltage.

Impeller diameter:200-500mm; Max air flow:8500CMH; Max static pressure:900Pa.

Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.

Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.

Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.

After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.

500mm industrial centrifugal fans

900Pa forward curved centrifugal fan

industrial centrifugal fans 8500CMH

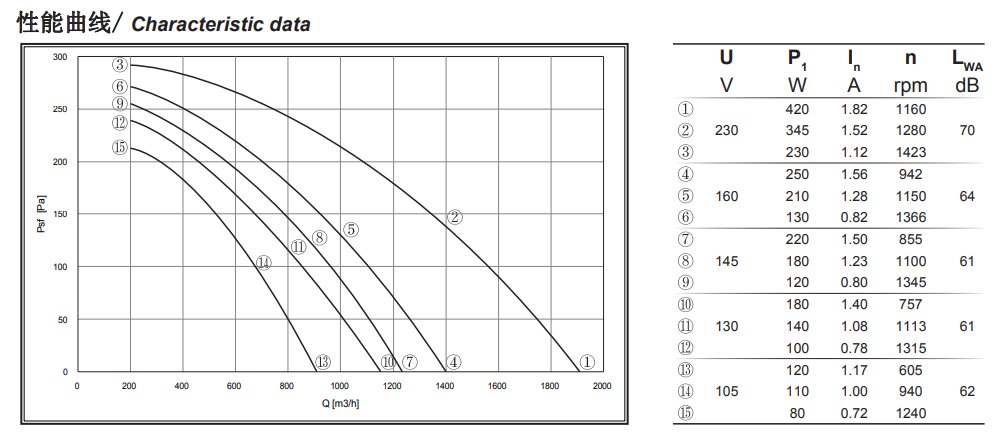

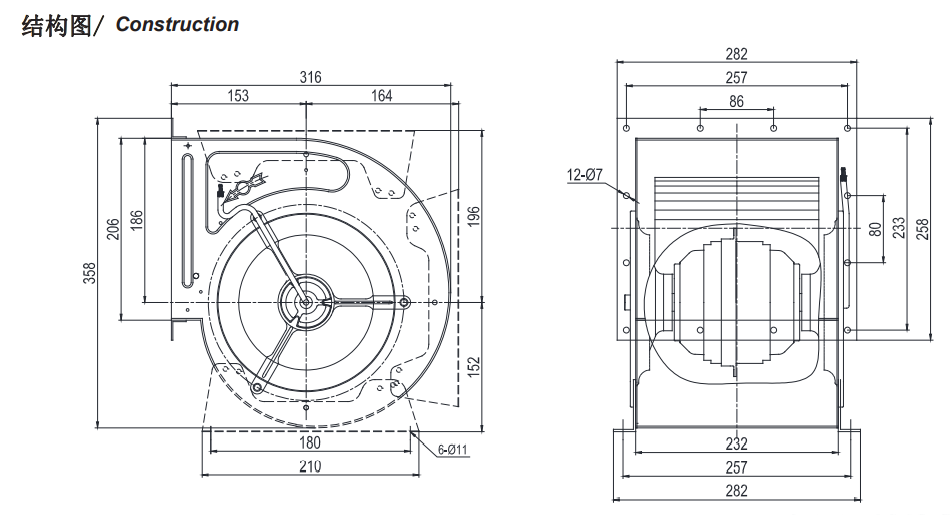

Impeller 500mm Industrial Centrifugal Fans 8500CMH 900Pa Images
